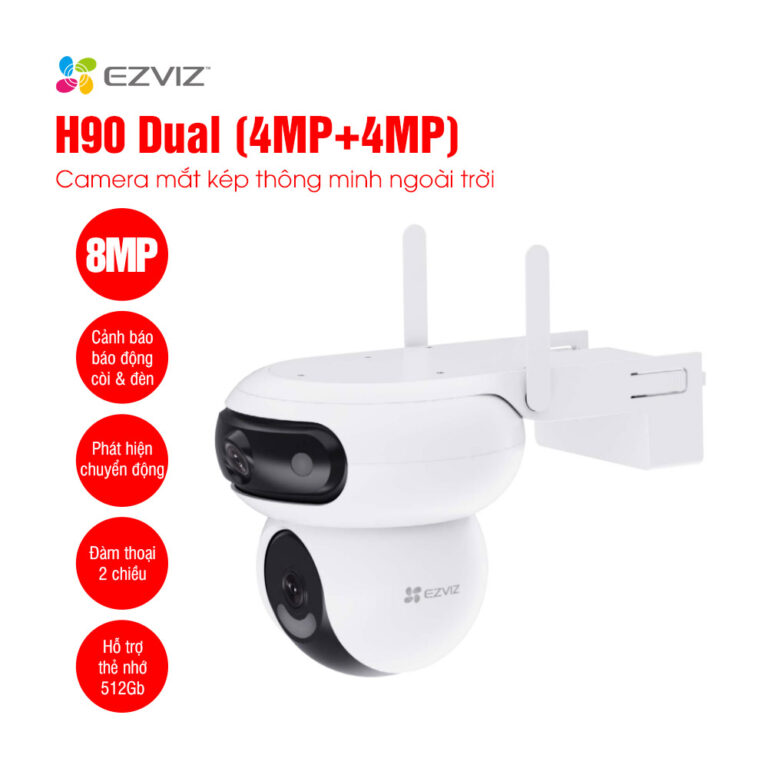

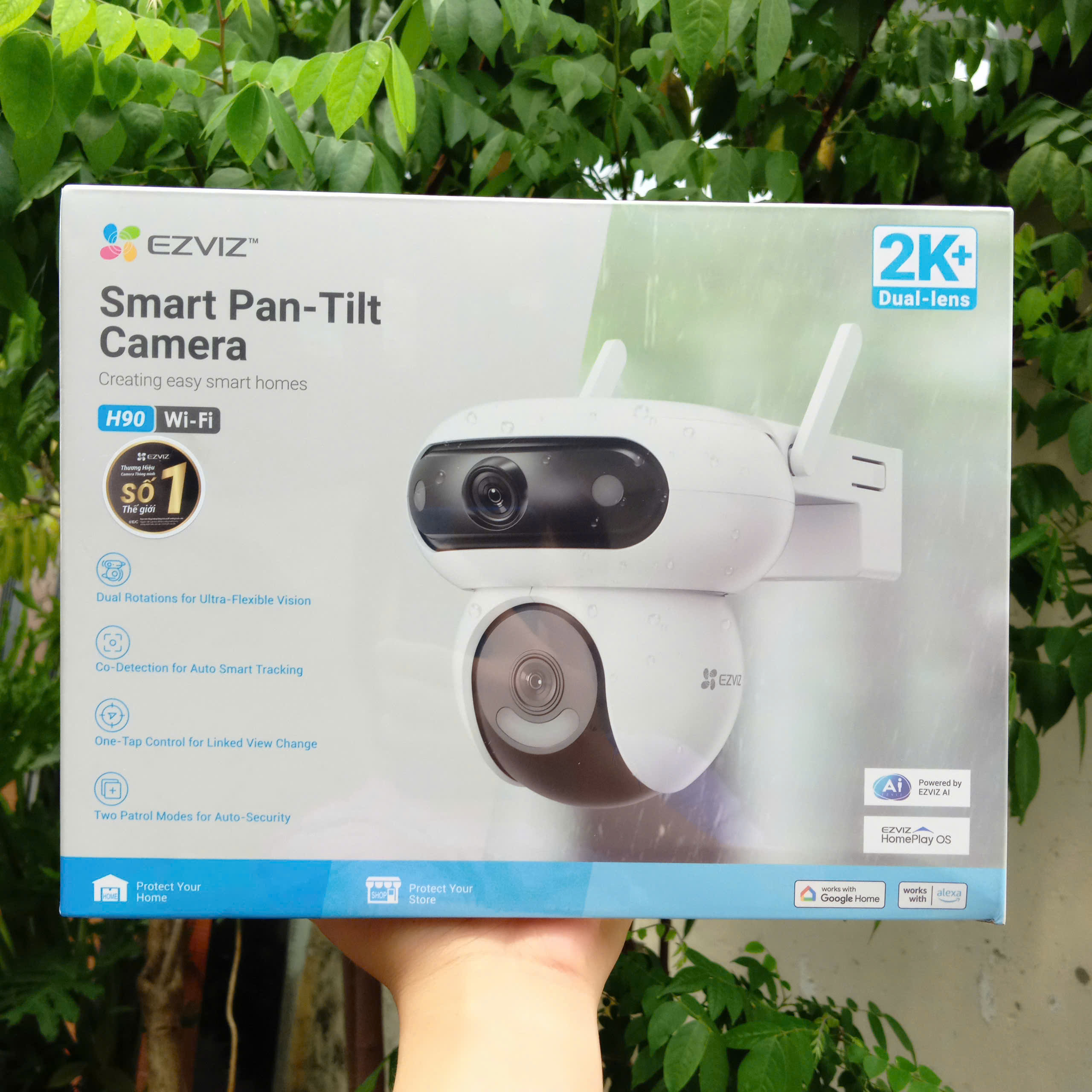

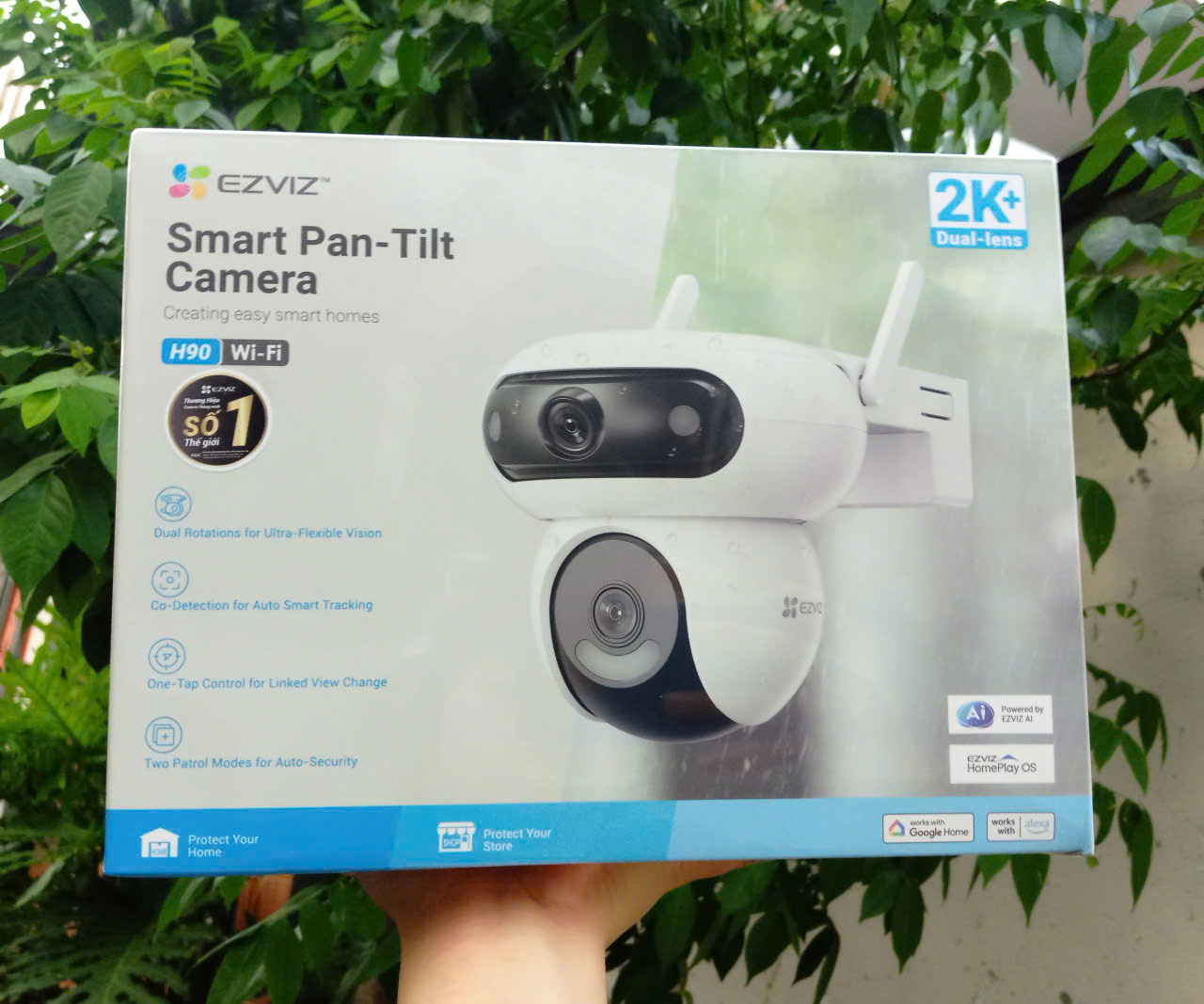

EZVIZ H90 Dual 2K+ Dual cameras, dual rotations
Specifications
| Specifications | |
|---|---|
| Model | CS-H90-R100-8H44WKFL |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens |
Top Lens: 2.8mm @ F1.6, Field of view : Diagonal 110°, Horizontal 96°, Vertical 54° Bottom Lens: 6mm @ F1.6, Field of view : Diagonal 60°, Horizontal 52°, Vertical 28° |

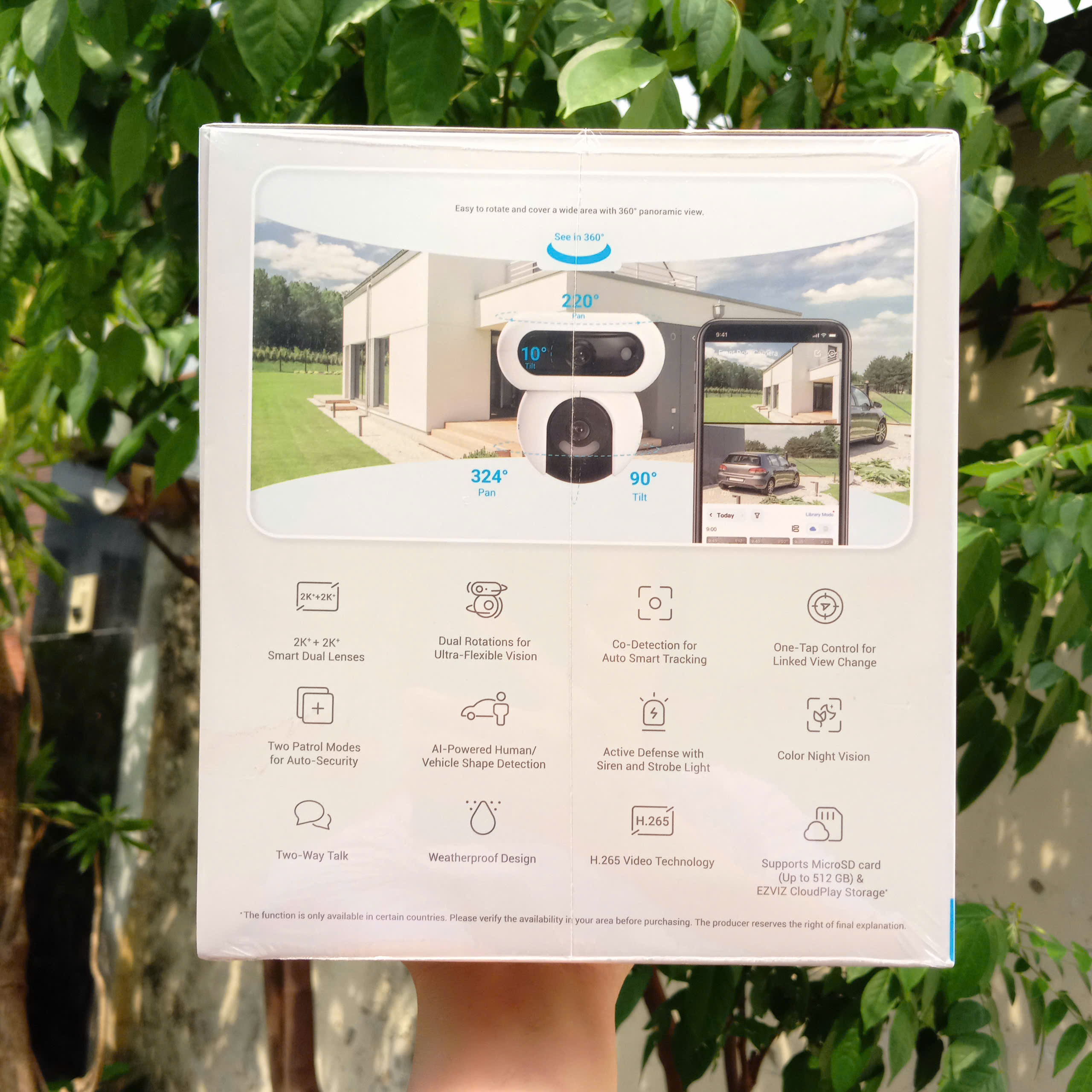

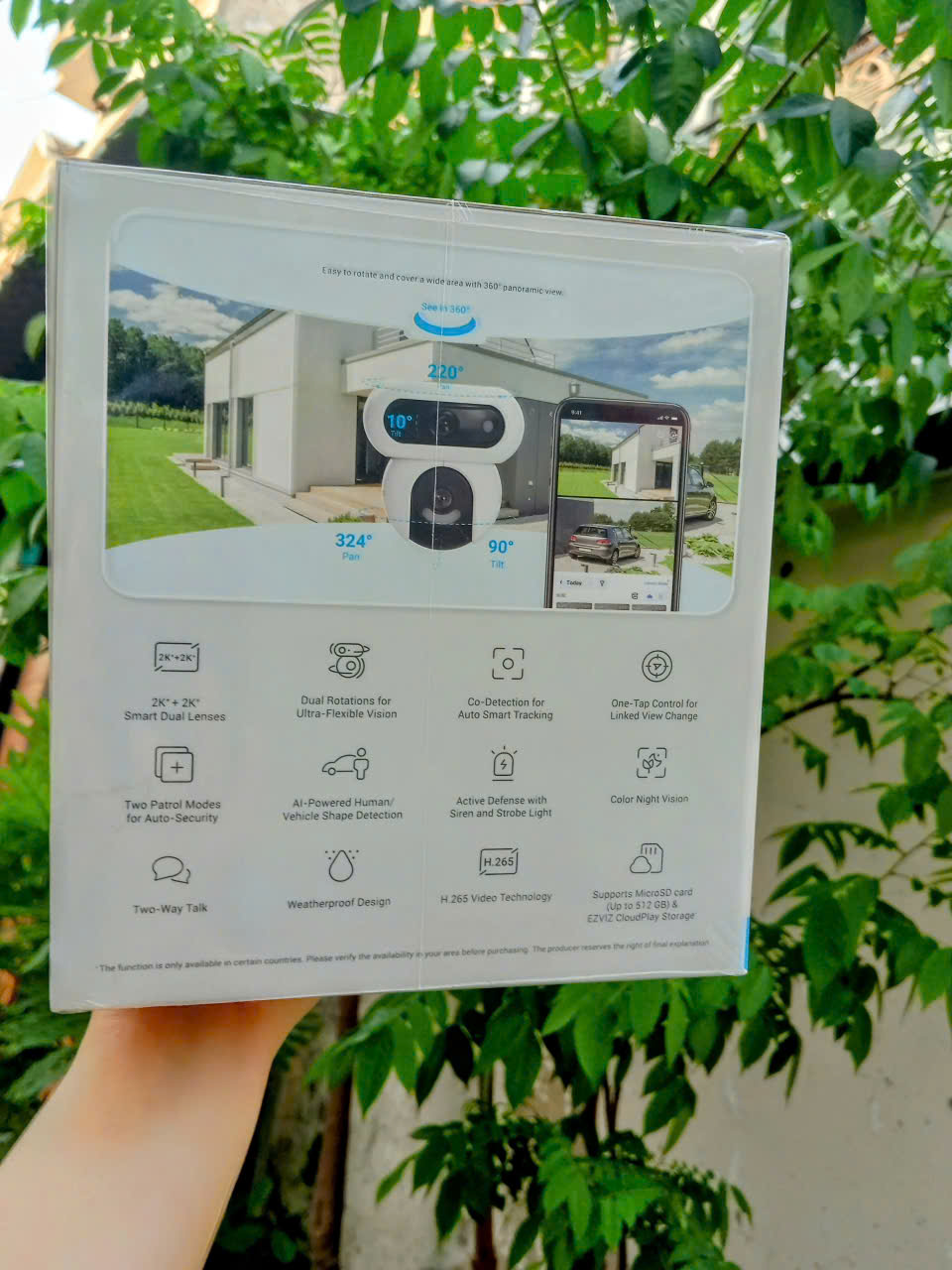

| PT Angle |
Top Lens: Pan: 220°, Tilt: 10° (manual adjustment for vertical angle ) Bottom Lens: Pan: 324°, Tilt: 90° |
| Minimum Illumination |
0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| IR Night Vision | 30 m (98 ft) |
| Color Night Vision |
Up to 40 m (131 ft) when two lenses point in the same direction |
| Video & Audio | |
| Max Resolution | 2K+ (2560 × 1440) |
| Frame Rate | Self-adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD; Full HD; Standard adaptive bit rate |
| Audio Bit Rate | Self-Adaptive |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | WPA-PSK/WPA2-PSK |
| Transmission Rate | 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Functions | |
| Smart Alarm |
AI-powered human shape detection AI-powered vehicle shape detection Motion detection |
| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (max. 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| General | |
| Operating Conditions |
-30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | IP65 + 2h rainstorm |
| Power Consumption | MAX. 18W |
| Dimensions | 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inch) |
| Packaging Dimensions | 255 × 176 × 194 mm (10.04 × 6.93 × 7.64 inch) |
| Weight |
Net weight: 723 g (25.51 oz) With Package: 1203 g (42.43 oz) |
| In the box | |
| In the box | - H90 Dual 2K+ Camera |
| - Power Adapter | |
| - Drill Template | |
| - Waterproof Kit | |
| - Screw Kit | |
| - Regulatory Information × 2 | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / UL / WEEE / RoHS / REACH |
